Hot-Sale Sinotruk Howo 8x4 Diesel 400hp Heavy Duty Cargo Truck Chassis

Brand Name : SINOTRUK

Model Number : ZZ1317V3867A

Certification : CCC

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units/month

Delivery Time : 20-30 days

Packaging Details : nude package

Engine : WP12.400E201

Gross Vehicle Weight : 31000kg

Tyres : 12.00R20

Fuel type : Diesel

Front axle : VGD95 drum type

Rear axle : HC16 double reduction

Fuel tank : 400L

Transmission : HW19710, 10F & 2 R

Contact Now

Hot sale Sinotruk Howo 8x4 Diesel 400hp Heavy Duty Cargo Truck Chassis

Our HOWO trucks are a good choice for transporting all kinds of goods. The good quality and stability of Sinotruk 8x4 truck will benefit you. It is equipped with 76 cab, 1 berth and air conditioner for you to drive more comfortable. The transmission is HW19710 manual transmission with 10 forward gears and 2 reverse gears.

Advantages:

The price advantage of this product is obvious. The truck has a powerful engine and a sturdy frame, making it suitable for all kinds of road conditions, especially difficult ones. Due to its reasonable structure and superior performance, this truck can be used in various road conditions.
During production, the whole truck frame is rust cleaned and sandblasted before being painted.
Before delivery, the truck body is sprayed with wax to prevent pollution by seawater during transportation.
Our after-sales service provides technical support and training. We can customize the products for you according to your requirements.

Specification

 Engine  Engine model  W12.400E201, Euro II emission standard
 Maximum output(kw/rpm)  294/1900(400hp)
 Maximum torque(nm/rpm)  1800/1000-1400
 Displacement (L)  11.596
 Pattern (Type)  6-cylinder in-line with water inter cooling, two   valve & the supercharger in the back
 Cab  Driving type  Left Hand Drive (RHD is optional)
 Cab type  HW76 flat roof cab with one bed, with A/C. Up   and  down, front and back, adjustable steering   wheel, VDO instrumentation and control module,   double locking structure belt, sun shade
 Clutch  Single-plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating   with air assistance, standard 430B type
 Transmission  HW19710; 10 speeds; main & vice structure
 Steering  ZF8118, German advanced technology
 Front axle  VGD95 drum type
 Rear axle  HC16, double reduction
 Fuel tank  400L
 Electrics  Operating voltage (single wire system): 24V; Generator: 1540W;
　  Starter: 24V, 7.5Kw; Battery: 2X12V, 165Ah, 2 batteries
 Brakes  Service brake; Parking brake; Auxiliary brake & ABS/EVB ( is optional)
 Tires/ Wheel  12.00R20, 12pcs + 1 spare
 Chassis  Front/rear suspension semi-elliptic reinforced leaf springs & Shock absorber & The   horizontal stabilizer
 Other optional  All lights device: Cigar-lighter, horn, headlamps, fog lights, brake lights
 Optional: Recorder & Traveling data etc
 Weight   Parameters  Kerb. Mass  13070kg
 Total mass  31000kg
 performance   parameters  Max. speed  102km/h
 Max. gradeability  50%
 Approach/departure angle  16/15(degree)
 Dimension   Parameters  Overall dimension  9800×2496×3048(mm)
 Wheel base  1800+3800+1350(mm)

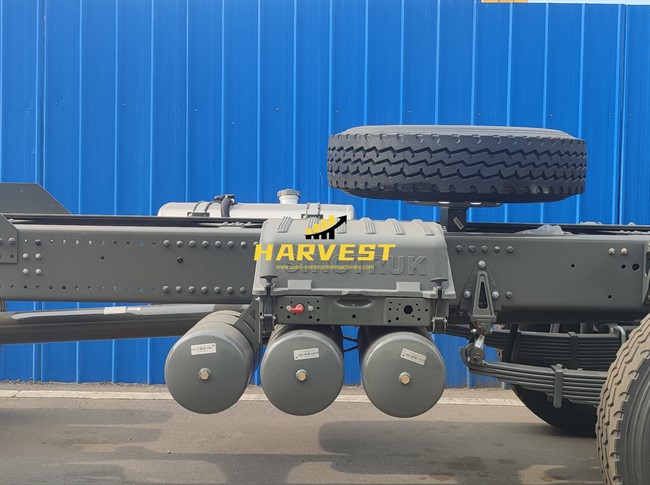

SINOTRUK HOWO 8x4 Heavy Duty Cargo Truck Chassis: Spare Tire Rack

Hot-Sale Sinotruk Howo 8x4 Diesel 400hp Heavy Duty Cargo Truck Chassis

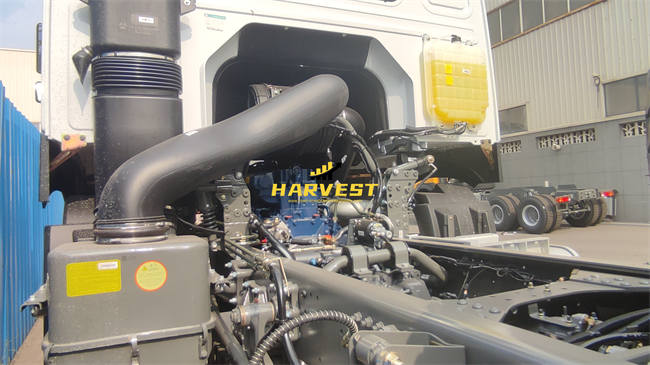

HOWO 8x4 Heavy Duty Cargo Truck Chassis: Intake Pipe

Hot-Sale Sinotruk Howo 8x4 Diesel 400hp Heavy Duty Cargo Truck Chassis

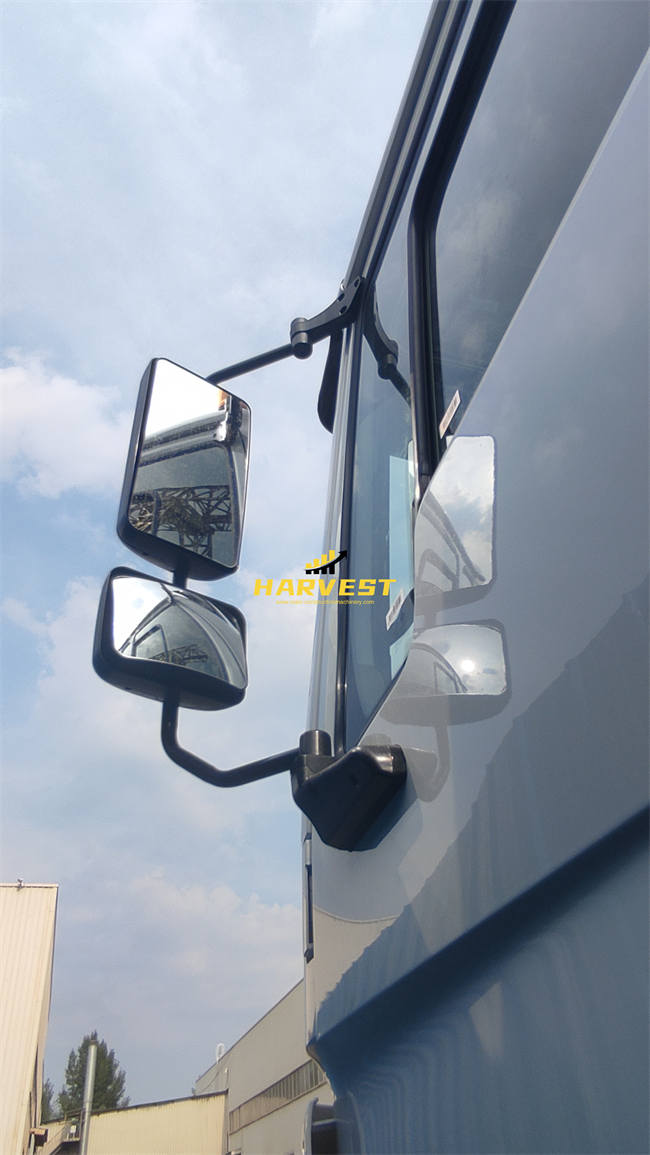

Hot-sale 400hp HOWO 8x4 Heavy Duty Cargo Truck Chassis: Front Mirror

Hot-Sale Sinotruk Howo 8x4 Diesel 400hp Heavy Duty Cargo Truck Chassis
