7500x2300x1400mm High Roof 2 Sleepers 6x4 420hp 30 Ton Heavy Duty Cargo Truck

Henan Harvest Machinery & Truck Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

7500x2300x1400mm High Roof 2 Sleepers 6x4 420hp 30 Ton Heavy Duty Cargo Truck

  • 1
  • 2

Brand Name : SINOTRUK

Model Number : ZZ1257N4641W

Certification : CCC

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units/month

Delivery Time : 20-30 days

Packaging Details : nude package

Engine : D12.42-20

Emission standard : Euro 2

Transmission type : Manual

Cargo Box Size : 7500x2300x1400mm

Gross Vehicle Weight : 25000kg

Tyres : 12.00R20/12R24 for option

Fuel type : Diesel

Capacity (load) : 21 - 30t

Contact Now

High Roof 2 Sleepers 6x4 420hp 30 Ton Heavy Duty Cargo Truck Size 7500x2300x1400mm
Cargo truck is mainly designed for transporting goods.

Drive type: 4x2, 6x2, 6x4, 8x4 available
Engine capacity: 266hp, 290hp, 336hp, 371hp and 420hp.

Description:

1. The price is competitive.

2. Powerful engine and strong frame, which can suit to all kinds of road conditions, especially for the tough roads

3. Widely used in such multiple road condition, reasonable structure, nice performance.

4. The tank is engaged for the stable, safe logistics of fuels transportation and storage.

5. Rust cleaning, sand blasting whole tank frame before painting.
6. Before delivery, do wax spray process to against the trailer body suffer seawater

7. Technique support and training.

8. Customization service, as per your request, we will customize our production for

Competitive Advantage

1. Made by high quality carbon steel
2. High quality and competitive price.

3. Different colors are available according to your choice.

4. Efficient production, fast delivery.

5. Professional sales team.
6. Professional team for spare parts and aftersales services.

Specification

 Weight

 Curb weight (Kg)

 11450



 Gross vehicle   weight (Kg)

 25000

 Dimension

 Length(mm)

 10350



 Width(mm)

 2496



 Height(mm)

 3718



 Wheel base (mm)

 4600

 Performance

 Maximum driving   speed (km/h)

 102



 Fuel consumption
 (1/100 km)

 35

 Cabin

 HW76 Long cab, with two seats and 1 sleeper, 2-arm windscreen wiper system with   three speeds, damped adjustable driver's seat, with heating and ventilating system,   exterior sun visor, safety belts, adjustable steering wheel, air conditioner and high dumper

 Engine

 Model

 D12.42-20(Euro II)



 Type

 Diesel Engine, 6-cylinder in line, 4-stroke, water-cooled, turbo-   charged & inter-cooled, direct injection



 Horsepower

 420hp



 Maximum output   Kw/r/min

 309/2000



 Maximum torque   N.m/r/min

 1820/1100-1500



 Bore x Stroke

 126x155mm



 Displacement

 11.596L

 Gearbox

 SINOTRUK HW19710 transmission ,10 forward and 2 reverse



 I II III IV V VI VII VIII IX X



 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1



 R1-13.91 R2-3.18

 Clutch

 SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

 Steering

 ZF8118 ( left hand driving) hydraulic steering with power assistance.

 Front Axle

 SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.

 Rear Axles

 SINOTRUK HC16 (2x16 ton loading capacity)Pressed axle housing, central double   reduction with differential locks between wheels and axles .

 Brake   System

 Service brake:dual circuit compressed air brake
 Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

 Tires

 12.00R20 radial tire with 1 Spare tire ( total 11pcs)

 Electrics

 Operating voltage: 24V, negative grounded
 Batteries: 2x12V,165Ah
 horn, headlamps, fog lights, brake lights, indicators and reverse light.

 Oil Tank

 400L

 Box  Size

 7500x2300x(800+600)mm, bottom 4mm, side 3mm

 Color

 White

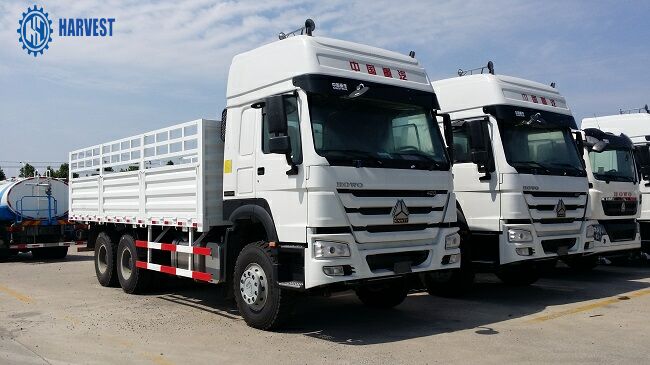

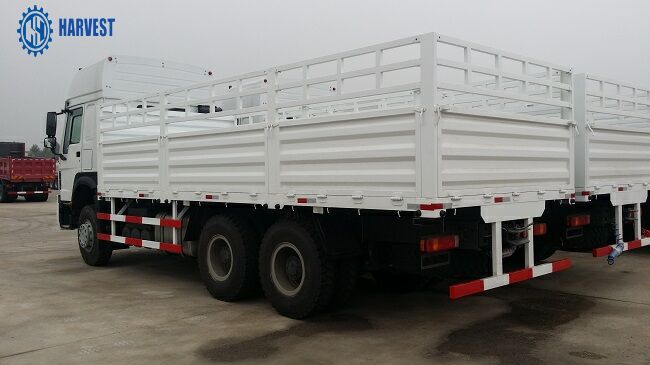

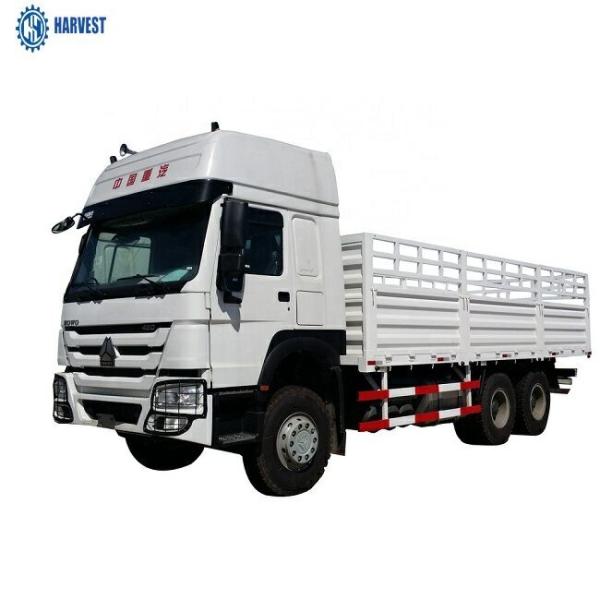

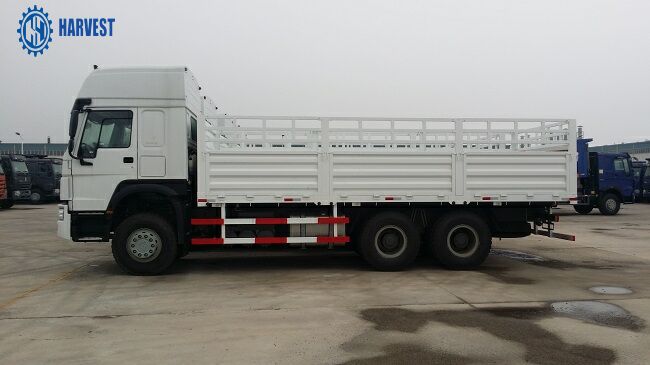

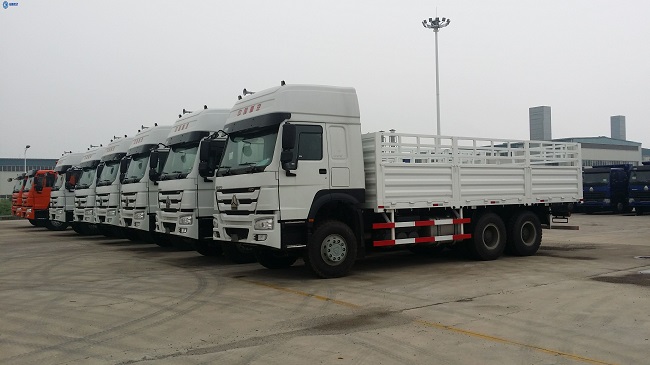

Detailed Pictures
7500x2300x1400mm High Roof 2 Sleepers 6x4 420hp 30 Ton Heavy Duty Cargo Truck

7500x2300x1400mm High Roof 2 Sleepers 6x4 420hp 30 Ton Heavy Duty Cargo Truck7500x2300x1400mm High Roof 2 Sleepers 6x4 420hp 30 Ton Heavy Duty Cargo Truck7500x2300x1400mm High Roof 2 Sleepers 6x4 420hp 30 Ton Heavy Duty Cargo Truck
