4x4 Mini Digging Machine MR30-25 Digger 1m3 Backhoe Loader Machine with H Outrigger

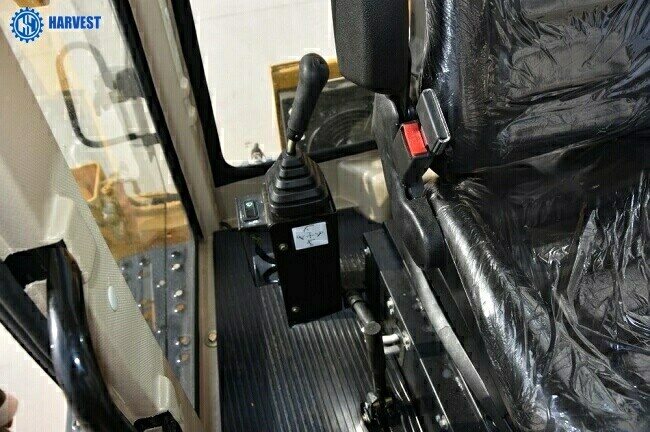

MR30-25 backhoe loader with full hydraulic joystick, work and control more easy. The luxurious cab is large, safer and more comfortable.
Large seat, non-slip rubber foot pedal, single handle control, Radio, electronically controlled driving for option .
MR30-25 Backhoe loader with 16/70-24 big tire , steel wire tire for option , Heavy duty alxe , increase work capacity;
Compact articulated structure reduces cornering radius for better adaptation to different working environments.
Double fulcrum support makes the work more stable and safer; Unique curved arm design, shortening the length of the vehicle and increasing the depth of excavation.
Model Characteristics:
1. Equipped with Yuchai engine
Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make intime brake automatically, so it is more safety.
2. Humanization designs
The hand handle layout reasonable, manipulating is portable; steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable. The back wheel bridge can swing up and down round the cancer, it make wheels has well cling, so the machine has good span and cross capability.
3. Optimized load work device
Reasonable joint layout, dependable position limit function. Lavelling bucket automati-cally in unload position, lacenning labor intensity, and the work range is larger, workfore is more study and steady, the work efficiency is higher.
Optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers
Product Parameter
| Main Parameter | Operating weight | 7640KG |
| Dimension(L*W*H) | 5910x2268x3760mm |
| Wheel base | 2250mm |
| Mini Ground Clearance | 300mm |
| Bucket Capacity | 1.0cbm |
| Breakout Froce | 38kN |
| Rated load | 2500kg |
| Bucket Dumping Height | 2742mm |
| Bucket Digging Depth | 52mm |
| Backhoe Capacity | 0.3cbm |
| Max. Digging Depth | 4082mm |
| Max. Pulling Force | 39kN |
| Engine | Model | Yuchai |
| Rated Power | 75kw |
| Rated Speed | 2400 r/min |
| Max. Torque | ≥261.7N.M/1800 r/min |
| Displacement | 4.4L |
| Steering System | Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36° |
| Min. Turning Radius | 5018mm |
| Pressure of the System | 12MPa |
| Axle | Manufacturer | Feicheng Axle Factory |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Transmission System | Torque Converter | YJ280 Single-stage Three Elements |
| Gearbox | Fixed shaft power transmission |
| Gears | F2/R2 |
| Max.Speed | 22km/h |
| Tyre | Model | 16/70-20 |
| Brake System | Service Brake | Air over Oil Caliper Brake;External Type; Self-regulation;Self-balance |
| Park Brake | Operation Power Implementing brake; Manual Operation Power Terminating Brake |
| Hydraulic System | Digging Power of Excavator Grab | 46.5kN |
| Digging Power of Dipper | 31kN |
| Bucket Lifting Time | 5.4s |
| Bucket Lowering Time | 3.1s |
| Bucket Discharge Time | 2.0s |

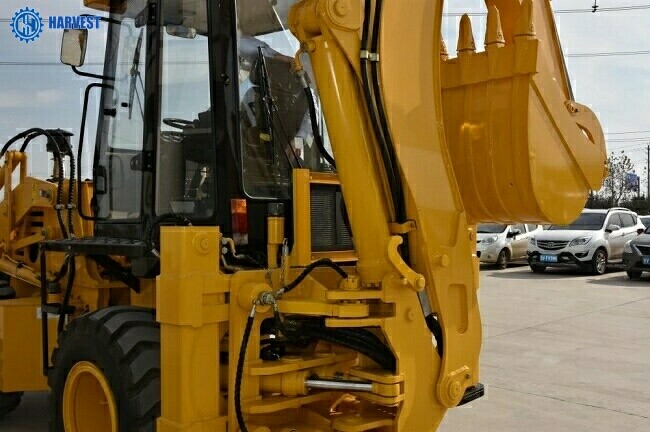

Product Picture
