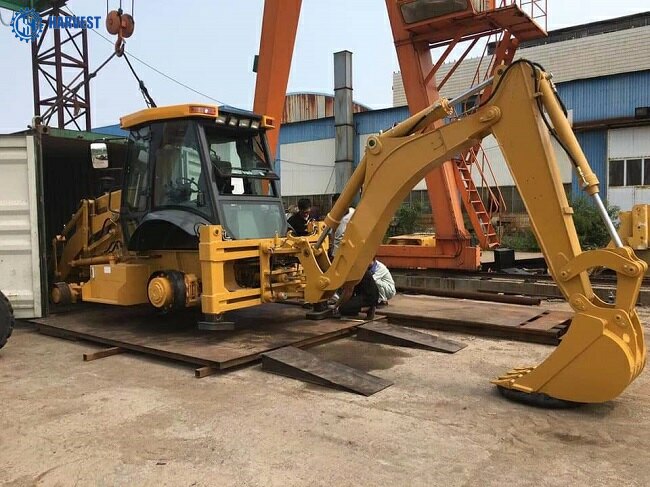

4WD SAM388 Backhoe Loader Machine with Cummins Engine 2.5 Ton Digger for Zambia
388 backhoe loader with full hydraulic joystick, work and control more easy. The luxurious cab is large, safer and more comfortable.
Large seat, non-slip rubber foot pedal, single handle control, Radio, electronically controlled driving for option.
388 Backhoe loader with 16/70-24 big tire , steel wire tire for option , Heavy duty alxe , increase work capacity;
Compact articulated structure reduces cornering radius for better adaptation to different working environments.
Double fulcrum support makes the work more stable and safer;
Unique curved arm design, shortening the length of the vehicle and increasing the depth of excavation.
Model Characteristics:
1. Equipped with Cummins engine
Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make intime brake automatically, so it is more safety.
2. Humanization designs
The hand handle layout reasonable, manipulating is portable; steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable. The back wheel bridge can swing up and down round the cancer, it make wheels has well cling, so the machine has good span and cross capability.
3. Optimized load work device
Reasonable joint layout, dependable position limit function. Lavelling bucket automati-cally in unload position, lacenning labor intensity, and the work range is larger, workfore is more study and steady, the work efficiency is higher.
Optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers
Specification
| Main Parameter | Operating Weight | 8200KG |
| Overall Dimension (L*W*H) | 6150*2250*3763mm |
| Wheel base | 2200mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.0m3 |
| Breakout Force | 38KN |
| Loading lifting Capacity | 2500kg |
| Bucket Dumping Height | 2742mm |
| Bucket Dumping Distance | 925mm |
| Digging Depth | 52mm |
| Backhoe Capacity | 0.3 m3 |
| Max. Digging Depth | 4082/4500mm |
| Swing Angle of Excavator Grab | 190° |
| Max. Pulling Force | 39KN |
| ENGINE | Model | CUMMINS |
| Type | In Line Direct injection Four-Stroke and Injection Combustion Chamber |
| Cylinder-Inside Diameter-Stroke | 4-105*120 |
| Rated Power | 74KW |
| Rated Speed | 2400r/min |
| Min.Fuel Consumotion | ≤242g/km.h |
| Max. Torque | ≥252N.M |
| Displacement | 4.4L |
| TEERING SYSTEM | Model of Steering Device | BZZ5-250 |
| Steering Angle | ±36 ° |
| Min. Turining Radius | 6581mm |
| Pressure of the System | 12Mpa |
| AXLE | Manufacturer | Front xle: Yitu Kaichuang
Rear Axle: Feicheng Axle Factory |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 8/18.5t |
| TORQUE CONVERTER | Model | YJ280 |
| Type | Single-stage Three Elements |
| Max. Efficiency | 84.40% |
| Inlet Pressure | 0.5Mpa |
| Outlet Pressure | 1.1Mpa-1.3Mpa |
| Cooling Method | Oil-cooling Pressure Circulation |
| GEARBOX | Type | Fixed Shaft Power Transmission |
| Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max. Speed | 28Km/h |
| TIRE | Model | 14-17.5/19.5L-24 |
| Pressure of front wheel | 0.55Mpa |
| Pressure of Rear wheel | 0.223Mpa |
| BRAKE SYSTEM | Service Brake | Air Over Oil Caliper Brake(External Type, Self-regulation,Self -balance) |
| Emergency Brake | Operation Power Implementing brake/Manual Operation Power Terminating Brak |
| HYDRAULIC SYSTEM | Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |
| Bucket lifting Time | 6.8s |
| Bucket Lowering Time | 3.1s |
| Bucket DischargeTime | 2.0s |
