4 Ton Road Construction Hydraulic Roller ST4000 Drum Width 1200mm in Ghana
Professionals in the field of road construction in pursuit of excellent compaction quality look over here! 4 tons double drum roller ——ST4000, with cutting-edge technology and performance with flexible and diversified configuration options, has become a strong comprehensive compaction tool in the industry, easy to handle all kinds of complex working conditions, and to complete the work tasks with high standards. The ST4000 is a powerful and comprehensive compaction machine in the industry.
♦ A wide range of power options to meet diverse needs ♦
Changchai ZN390B three-cylinder water-cooled diesel engine: The ST4000 can be equipped with the optional Changchai ZN390B engine, with a power of 28.5kW and a speed of 2,600rpm. As a veteran power in China, its water-cooled system ensures the stability of long-time operation, and it is suitable for municipal, highway and other conventional construction scenarios.
Yanmar 3TNV88 three-cylinder water-cooled engine: Yanmar 3TNV88 has a power of 28.1kW and a rotational speed of 3,000rpm. It realizes energy-saving and low emission with high-efficiency combustion technology, and its compact structure facilitates the layout and maintenance of the equipment, making it suitable for environmentally-friendly and cost-sensitive projects.
Kubota 4-cylinder water-cooled engine: Kubota's 4-cylinder engine provides 26.1kW of power, and is characterized by durability and low noise at 3,000rpm. It is able to operate stably under complicated working conditions and in noise-restricted urban areas, and is suitable for special construction environments.
♦ Upgraded core components for enhanced compaction performance ♦
Domestic Customized Cycloid Motor: ST4000 The optional domestic customized cycloid motor is compact and suitable for all kinds of road compaction work due to its stable torque output to drive the steel wheels. Its high cost performance effectively reduces the cost of the equipment, taking into account the performance and economy, which is suitable for cost-sensitive users.
French Poclain Motor: The internationally renowned French Poclain motor is known for its high precision and reliability, and when equipped with this motor, the ST4000 can realize stronger power output and precise speed control, significantly improving the compaction quality and maneuverability, making it an ideal choice for large-scale projects and high-standard projects.
Specification of 4 Ton Double Roller ST4000 Hot Sale in Ghana
| Description | Unit | Parameter value |
| Operation weight | kg | 3000 |
| Static line load | n/cm | 106/94 |
| Working width | mm | 1355 |
| Overall length | mm | 2480/2400 |
| Overall height | mm | 1955/2630 |
| Outside the turning radius | mm | 2405/3760 |
| Drum width | mm | 1200 |
| Drum diameter | mm | 630 |
| Wheel base | mm | 1650 |
| Engine brand | | CHANGCHAI | YANMAR | KUBOTA |
| Engine model | | ZN390B | 3TNV88 | V1505 |
| Engine type | | Diesel inline water-cooled four-stroke |
| Number of cylinders | | 3 | 4 |
| Output power | kw | 28.5 | 28.1 | 26.1 |
| Rotating speed | rpm | 2600 | 3000 | 3000 |
| Electrical equipment | | 12 |
| Speed | km/h | 0-10 |
| Climbing ability | % | 30/35 |
| Vibration frequency | hz | 65 |
| Exciting force | kn | 40 |
| Hydraulic oil capacity | L | 46 |
| Fuel capacity | L | 42 |
| Water tank capacity | L | 180 |
China Professional Road Roller Supplier Factory Show Photo

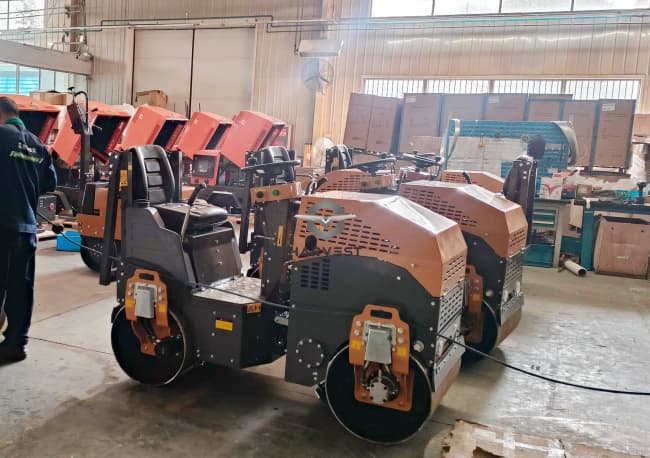

Road Construction Road Rollers are Neatly Discharged in the Factory Workshop
A batch of Walk Behind Road Construction Rollers Ordered by Customers in Ghana
Packed Chinese High-quality Road Rollers Ready for Shipment to Ghana
|
|
4 Ton Road Construction Hydraulic Roller ST4000 Drum Width 1200mm in Ghana Images
|
