2024 Front Wheel Loader ZL50GN With 3m3 Rock Bucket To Africa
Product Overview
ZL50GN wheel loader is the latest cross-generation product developed based on global technology resources. It focus on customer value and emphasize customer experience. They are the preferred equipment for production organizations in ports, mines, engineering construction, logistics and other fields.
Model Features
Unique high-torque and high-efficiency transmission chain is reasonably matched.
Unique super-heavy-load structural components have no excess weight.
The wheelbase is extended, and the working capacity and stability are in the leading position in the industry.
The centering design of the main hinge joint reduces the turning radius, reduces tire wear and energy consumption.
The cab adopts ergonomic design, overall skeleton structure, exquisite interior parts, and takes sound insulation and noise reduction measures. It has a wide field of view, super large space and high operating comfort.
Diversified configurations and complete accessories fully adapt to construction needs in different regions and working conditions.
Performance highlights
160kN traction and ≥3.5m high dumping capacity can easily cope with harsh conditions.
27500kg lifting capacity and 170kN breaking force can easily handle various materials.
Technical Position
ZL50G optimized version, the leading model of China's third-generation loader.
It brings together dozens of technologies.
Parameter of ZL50GN with Rock Bucket
| Description | Parameter value | Unit |
| Rated operating load | 5500 | kg |
| Bucket capacity | 3 | m³ |
| Machine weight | 17500±300 | kg |
| Dump clearance at maximum lift | 3100~3780 | mm |
| Reach at maximum lift | 1100~1220 | mm |
| Wheel base | 3300 | mm |
| Tread | 2250 | mm |
| Max.breakout force | 175±5 | kN |
| Max.horse power | 160±5 | kN |
| Hydraulic cycle time-raise | ≤6 | s |
| Total hydraulic cycle time | ≤10.5 | s |
| Min. turning radius over tyres | 5925±50 | mm |
| Articulation angle | 38 | ° |
| Gradeability | 30 | ° |
| Tyre size | 23.5-25-16PR | |
| Overall machine dimension L×W×H | 8225×3016×3515 | mm |
| Model | SC11CB220G2B1, Euro II | |
| Rated Power | 162 | kW |
| Travel Speed | 13/17km/h | Ⅰ-gear(F/R) |
| | 41km/h | Ⅱ-gear(F) |
5.5 Ton ZL50GN Wheel Loader Comfortable Operator Cabin

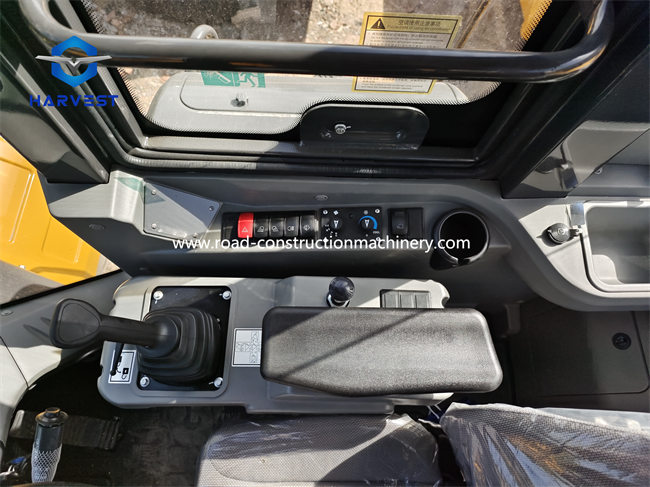

162kw Wheel Loader ZL50GN With Rock Bucket: Pilot Control with Joystick

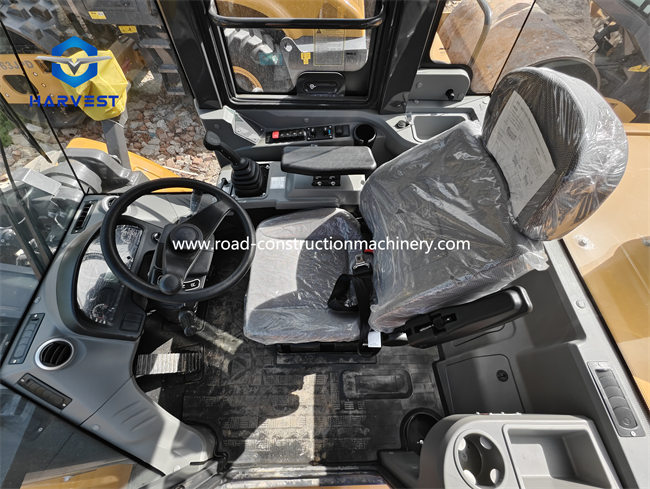

Hot Sell Wheel Loader WEICHAI Engine ZL50GN: Inside the Cabin

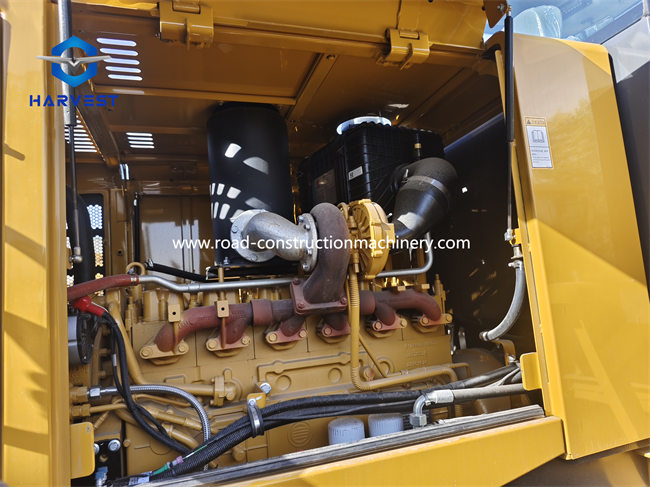

162kw 5.5 Ton Payloader ZL50GN: WEICHAI Engine, SHANGCHAI Engine for Option
