HB58K Filling Height 1540mm 6 Section 58m Concrete Pump Truck

Model Number : HB58K

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units/month

Delivery Time : 7 days

Packaging Details : nude package

Max. vertical conveying distance : 58m

Chassis : SINOTRUK

Productivity : 170m3/h

Feeding height : 1540mm

Reach height : 57.5m

Reach depth : 45.7m

Weight : 44000kg

Dimension(L*W*H) : 14300×2500×4000mm

Contact Now

6-section 58m Concrete Pump Truck HB58K Filling Height 1540mm

Dimensions (length * width * height): 14300×2500×4000mm
Weight: 44000kg
Power type: diesel engine
Certification: ISO9001
Maximum speed: 85
Weight: 44000kg
After-sales service: Services provided: Engineers can be provided for mechanical maintenance services abroad.
Mobile: Wheel
Chassis brand: SINOTRUK
Wheelbase: 2300 + 4000 + 1350mm
Maximum engine power: 294kW
Emission standard: Eruo V
Theoretical output: 170m³/h
Concrete pumping pressure: 7.4MPa
Theoretical pumping time: 25 times/minute
Diameter of the discharge cylinder×outer diameter: φ260×2000mm
Filling height: 1540mm
Place the boom structure: 6RZ
Reached height/depth/radius of gyration: 57.5 / 45.7 / 52.5 meters
Swivel angle: ±270°

Advantages

1. V7 series truck-mounted concrete pump truck is a new generation of equipment developed by Group and German SCHWING company. 2. High reliability, durability, and seven technical highlights. More reliable full hydraulic reversing technology, ultra-low pressure loss hydraulic system technology, safer and more intelligent electronic control system.

Parameter

 Category  Item  Unit  HB58K
 Overall  Outline dimension  mm  14300×2500×4000
 Overall weight  kg  44000
 Chassis  Model  /  ZZ5447V466HE1
 Max. speed  km/h  85
 Max. grade-ability  %  51.40%
 Wheelbase  mm  2300+4000+1350
 Engine  Model  /  MC11.40-50
 Power  kW  294
 Max. torque  N·m/(r/min)  1900/1000-1400
 Displacement  L  10.518
 Pumping   system  Theoretical output  m3/h  170
 Concrete pumping pressure  Mpa  7.4
 Theoretical pumping  time/min  21~23
 Delivery cylinder diameter ×stroke  mm  260/2200
 Max.diameter of pumping concrete   aggregate  mm  ≤40
 Filling height  mm  1540
 Concrete slump range  cm  8~23
 Placing
 boom		  Reach height  m  57.5
 Reach depth  m  45.7
 Slewing radius  m  52.5
 Slewing angle  °  ±270
 Unfolding angle of the 1st section  °  90
 Unfolding angle of the 2nd section  °  180
 Unfolding angle of the 3rd section  °  180
  Unfolding angle of the 4th section  ° 240
 Unfolding angle of the 5th section  ° 210
 Unfolding angle of the 6th section  °  90
 Stabilizer
 span		  Transverse span of front stabilizer  mm  9053
 Transverse span of rear stabilizer  mm  12200
 Others  Lubrication method    Automatic lubrication
 Control method    Manual/remote control
 Volume of water box  L  1000

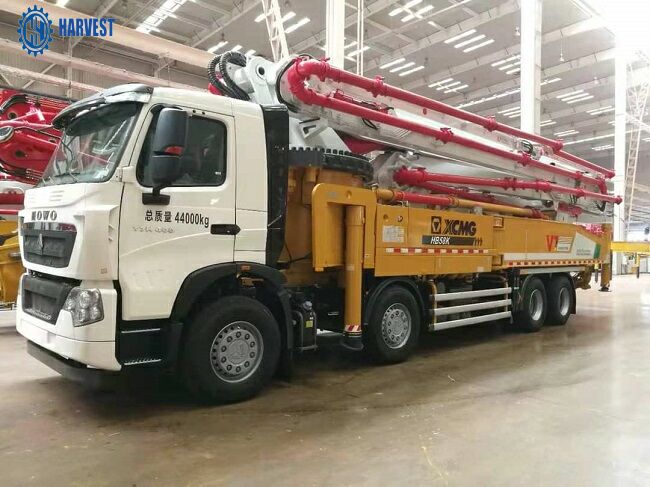

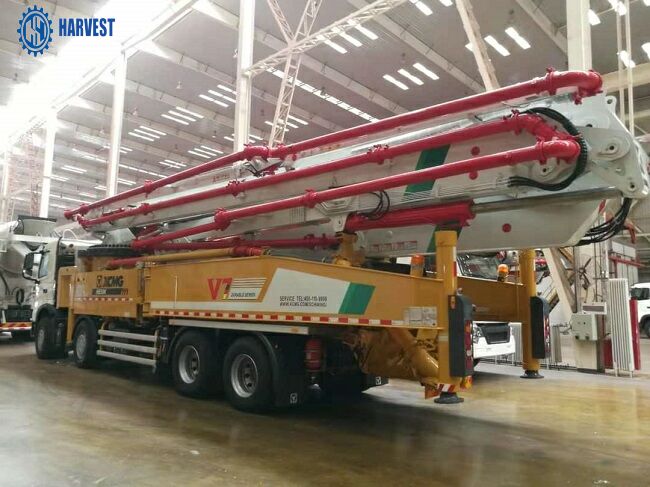

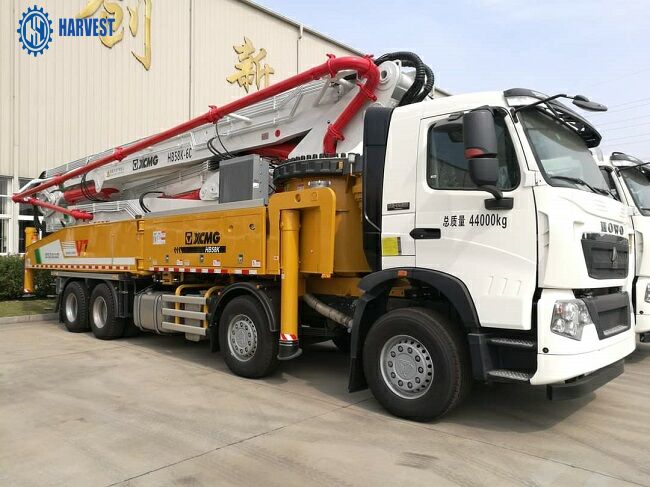

Pump Truck Picture

HB58K Filling Height 1540mm 6 Section 58m Concrete Pump TruckHB58K Filling Height 1540mm 6 Section 58m Concrete Pump TruckHB58K Filling Height 1540mm 6 Section 58m Concrete Pump TruckHB58K Filling Height 1540mm 6 Section 58m Concrete Pump Truck
